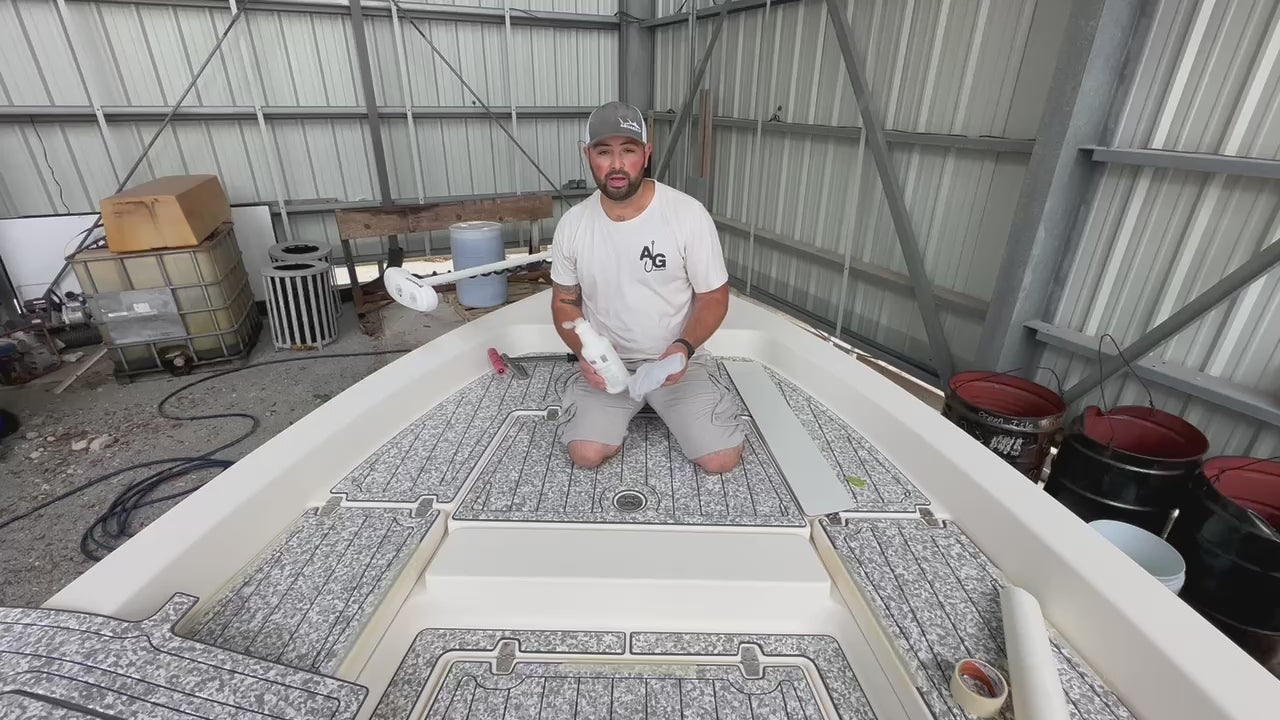

Installation Video Guide

This video demonstrations covering:

  • Surface preparation
  • Center-strip adhesive method
  • Proper rolling technique
  • Common installation mistakes to avoid

Install Instructions EVA Foam Boat Flooring

Aquagrip PE/EVA foam boat flooring is designed to enhance comfort, traction, and aesthetics in marine environments. When installed correctly, it provides a durable, low-maintenance solution for boat decks, cooler tops, and other high-use areas.

This guide covers tools, cleaning, preparation, installation technique, and long-term performance considerations to ensure your decking performs as intended for years to come.

Before You Start

Installing marine foam can feel intimidating, but proper preparation and technique make all the difference. Most premature failures occur due to insufficient cleaning or rushed installation, not product issues.

Take your time, follow each step carefully, and review the full guide before exposing any adhesive. Installation videos are included at the end of this page to visually demonstrate each step.

Tools & Cleaners Needed for a Successful Installation

Using the correct tools and cleaners is critical to long-term adhesion. Photos of each tool used are provided below.

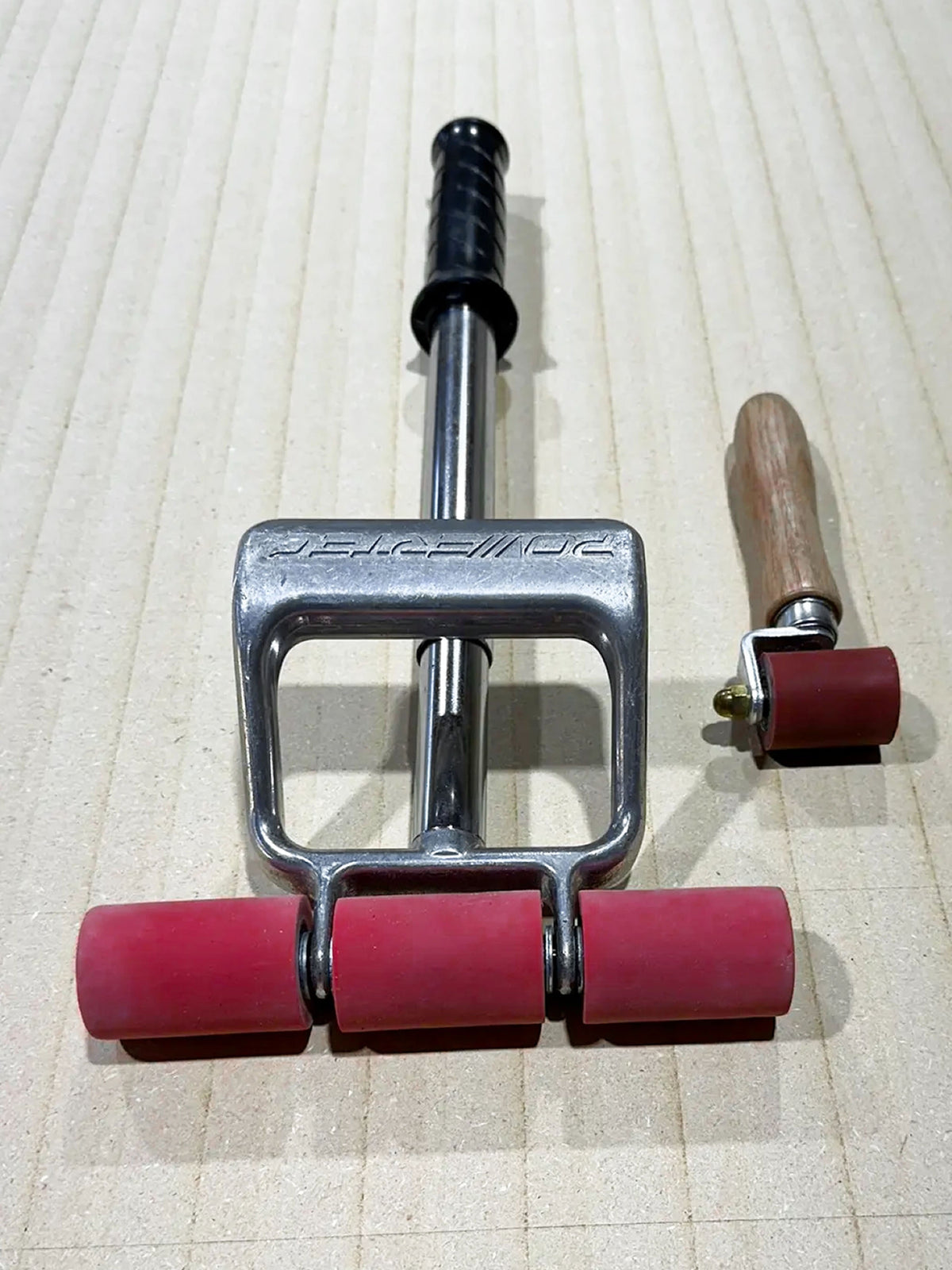

  • Laminate Roller

    Easily purchased at home improvement stores such as Home Depot or Lowe’s.

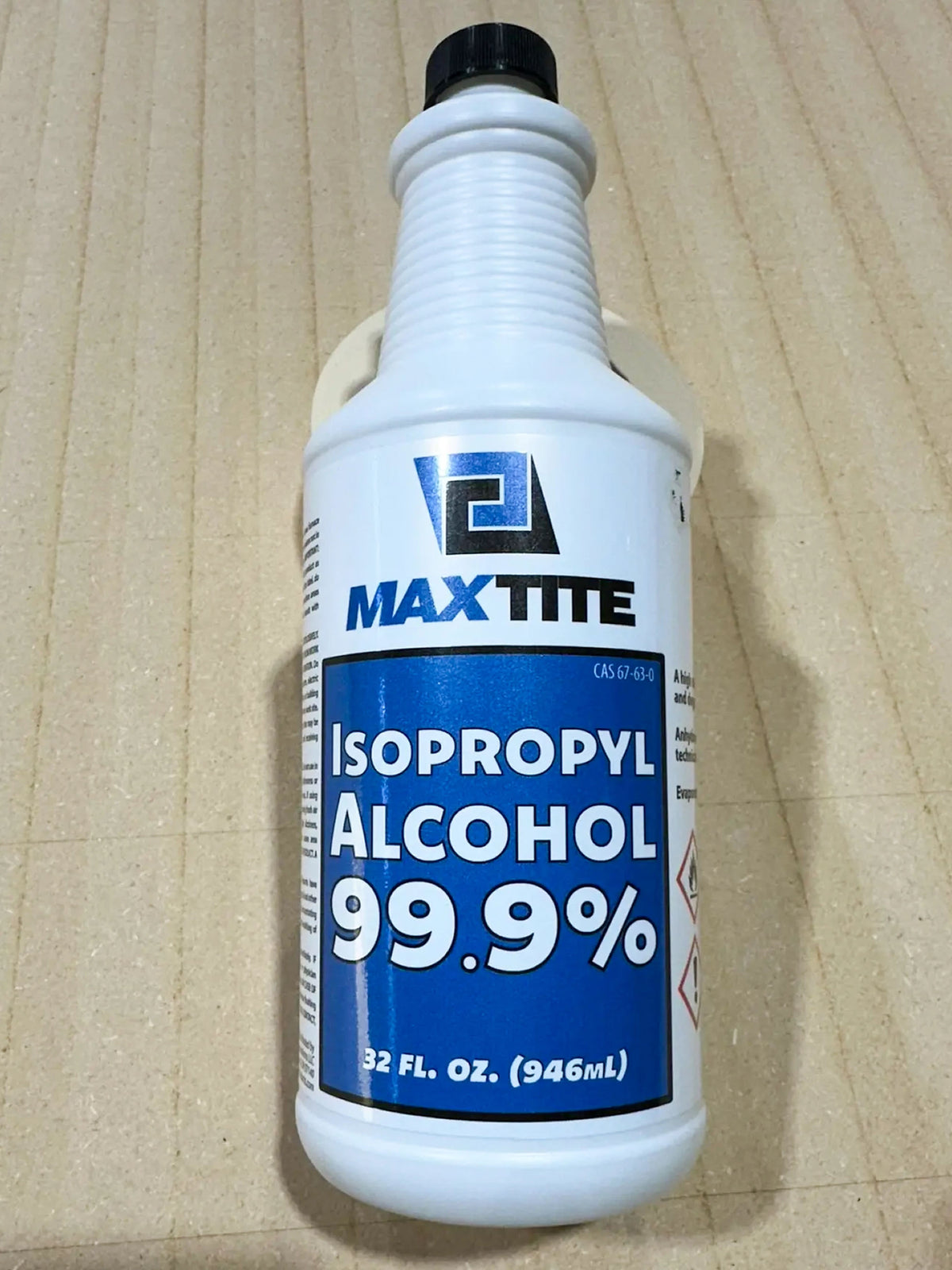

  • Isopropyl Alcohol (75%+ / 99% Recommended)

    Widely available at pharmacies, grocery stores, hardware stores, and online.

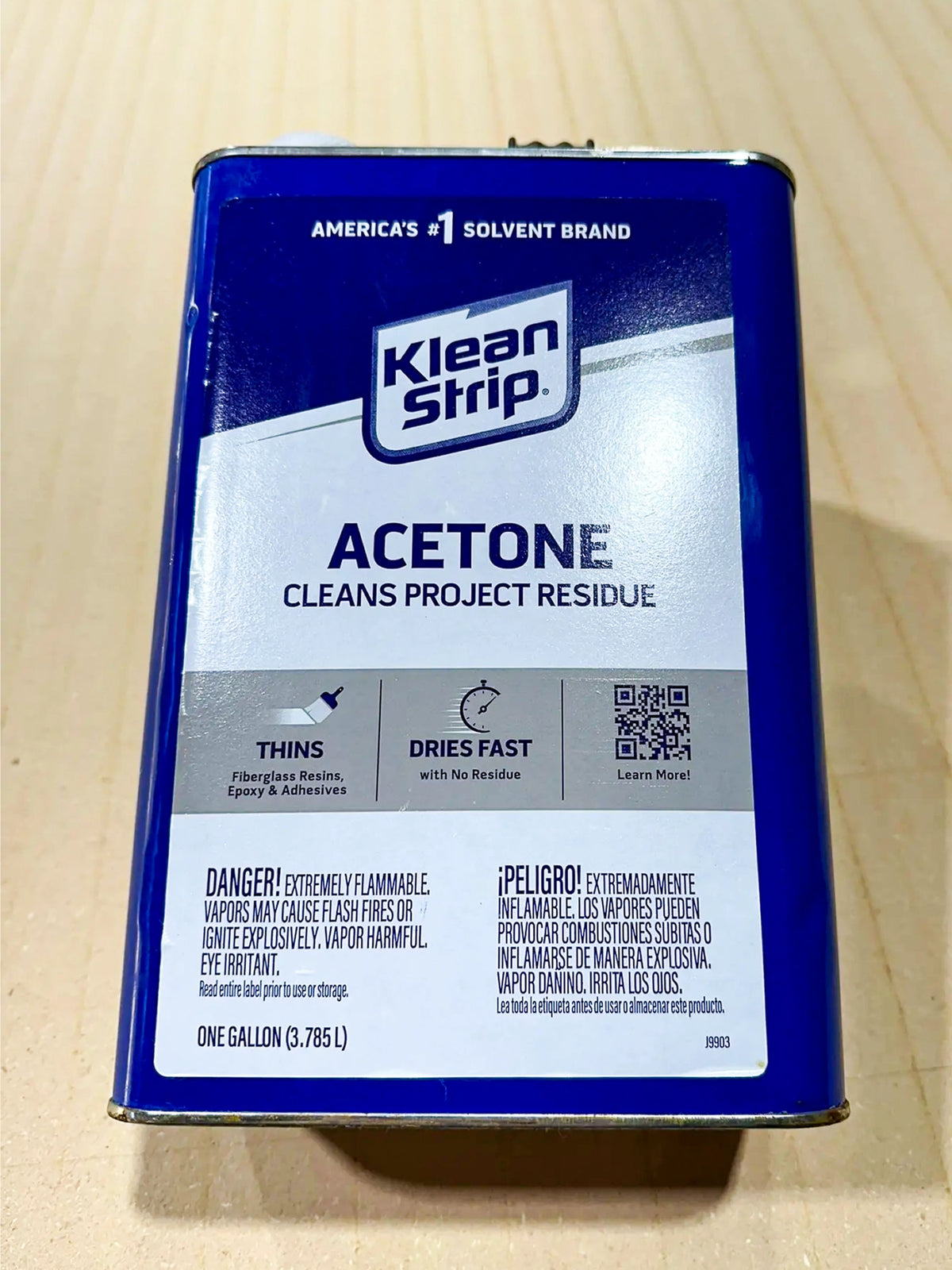

  • Acetone

    Commonly found at hardware stores, home improvement centers, and online retailers.

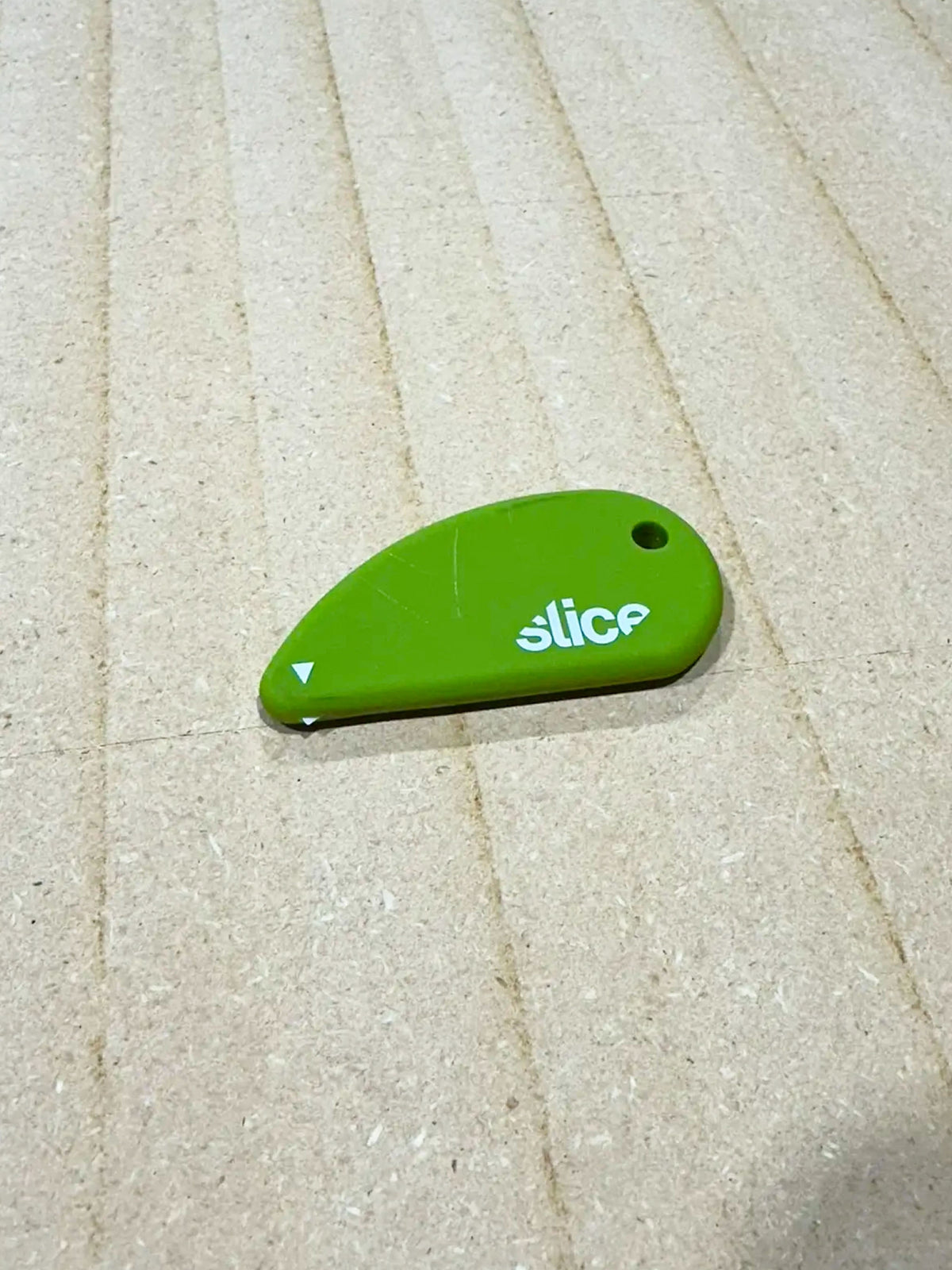

  • Slice Tool with Micro-Ceramic Blade

    Available online or at many hardware and craft stores.

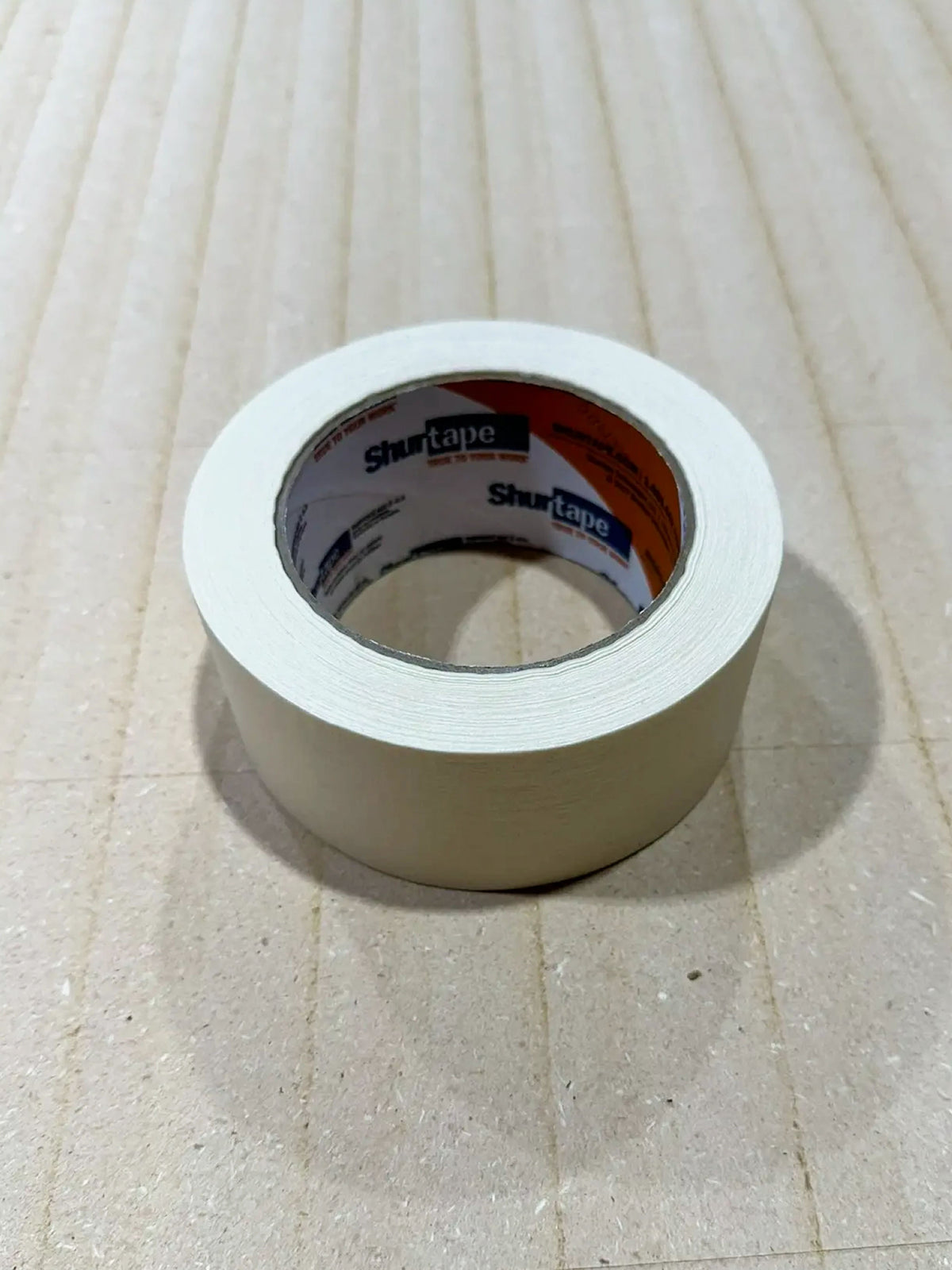

  • Contractor’s Tape

    Standard contractor or painter’s tape, available at any hardware store.

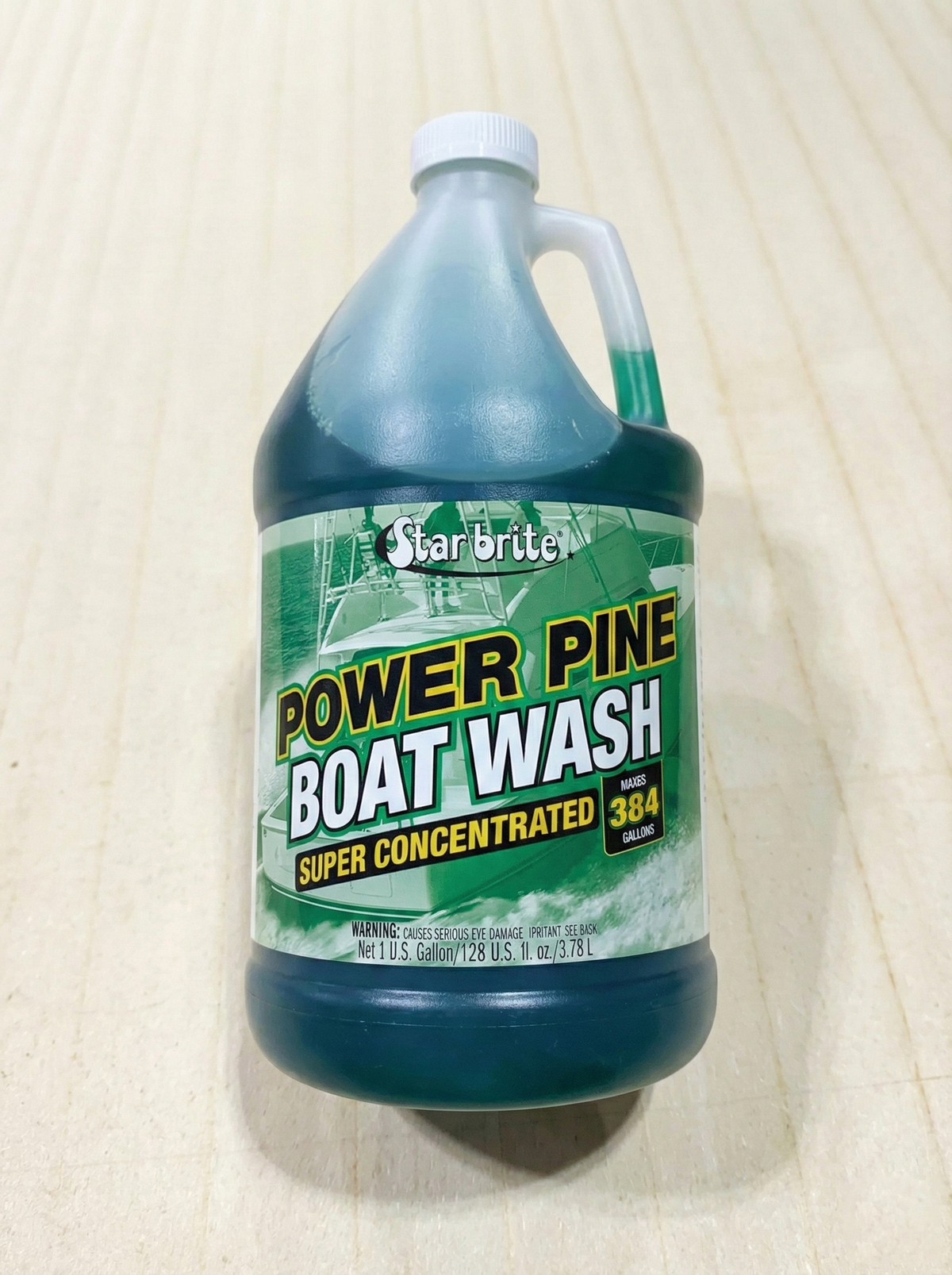

  • Boat Soap & Water

    Standard boat soap, available at any marine supply store or online.

Surface Cleaning & Preparation

Initial Wash

Before installing foam on your boat deck, cooler top, or any other surface:

  • Wash the area thoroughly with boat soap and water
  • Remove heavy dirt, salt, and grime buildup
  • Allow the surface to dry completely

Acetone Cleaning

Once the surface is dry:

  • Apply acetone to a clean, white, lint-free rag
  • Wipe down all areas that will receive foam
  • This step removes waxes, oils, and grease that prevent proper adhesion

Avoid spilling acetone on foam pieces or other finished surfaces. Do not use dyed towels, as solvents can leach color onto the surface. Allow acetone to fully evaporate before proceeding.

Final Alcohol Wipe

After acetone cleaning:

  • Use a fresh lint-free white rag
  • Apply isopropyl alcohol
  • Wipe the surface to remove any residue left behind

This final step ensures the surface is completely clean and ready for adhesive bonding.

Full Boat Installation Tip

If installing foam across a full deck or large area:

  • Wash the entire boat and allow it to dry
  • Perform acetone cleaning on all areas receiving foam
  • Use alcohol only on the exact area where each piece will be installed
  • Treat this area as a clean zone and avoid stepping or touching it prior to installation

Installing the EVA Foam Decking

All Aquagrip foam comes with 3M marine-grade pressure-sensitive adhesive. This adhesive activates once approximately 15 pounds or more of pressure is applied.

Why We Do Not Start From One Edge

Peeling adhesive from one side can cause alignment issues. Even a small error at the start can result in a noticeable misalignment at the end of the panel.

For this reason, we recommend the center-strip installation method described below.

  • Step #1

    Flip the foam panel so the paper backing faces up

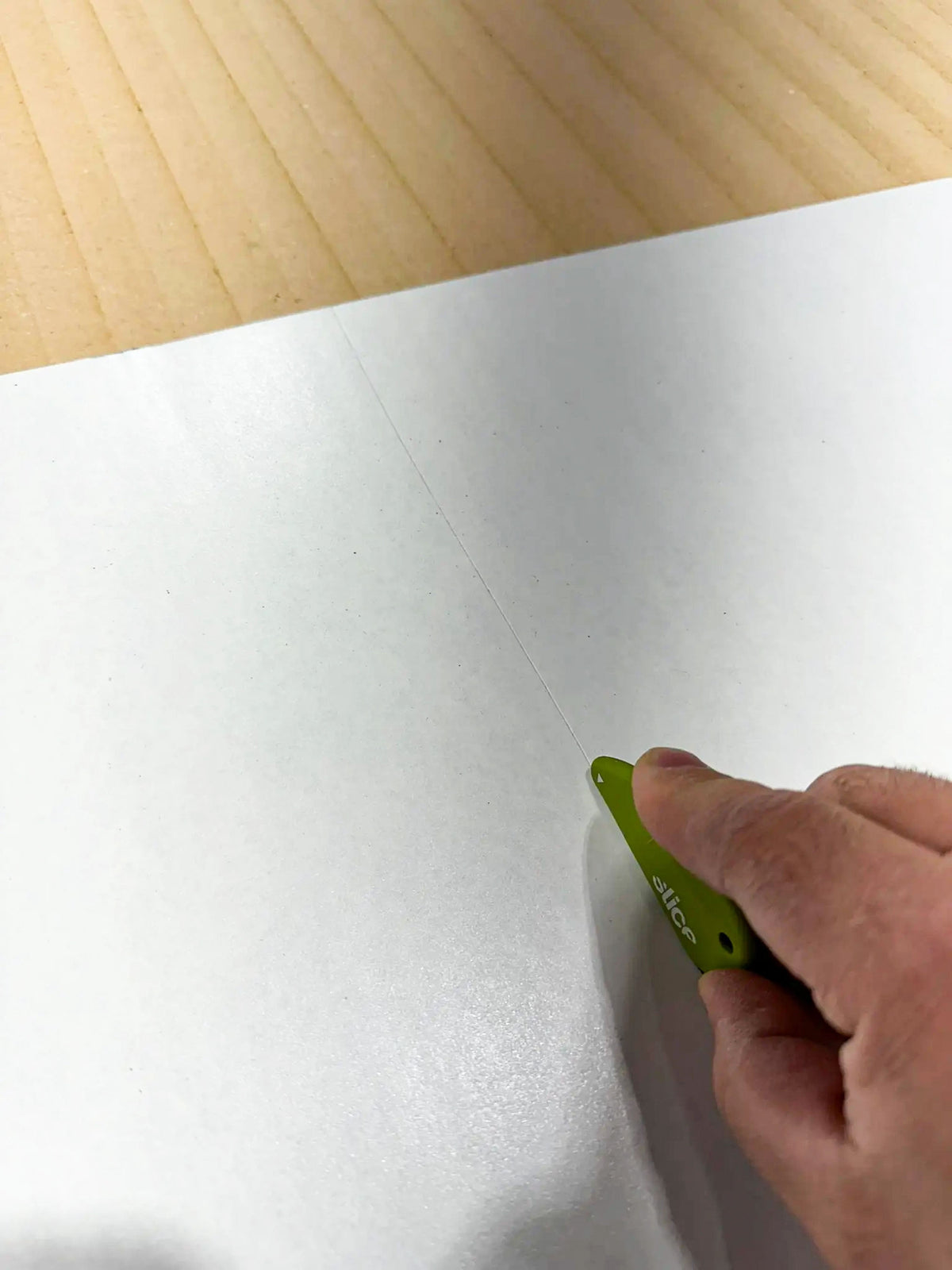

  • Step #2

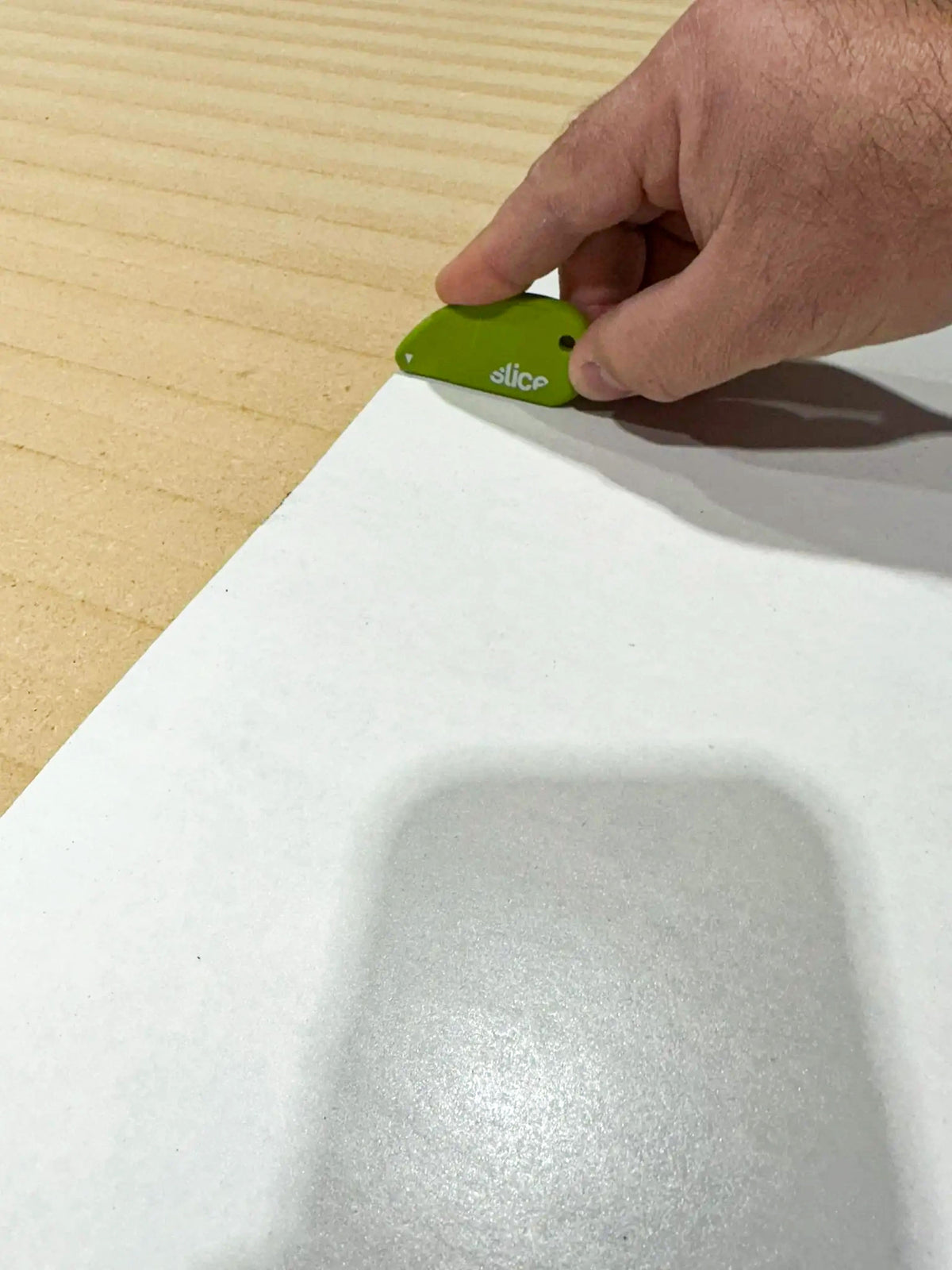

    Using a slice tool, make a straight cut from top to bottom in the center of the panel

  • Step #3

    Make a second cut approximately 1 to 1.5 inches away from the first

  • Step #4

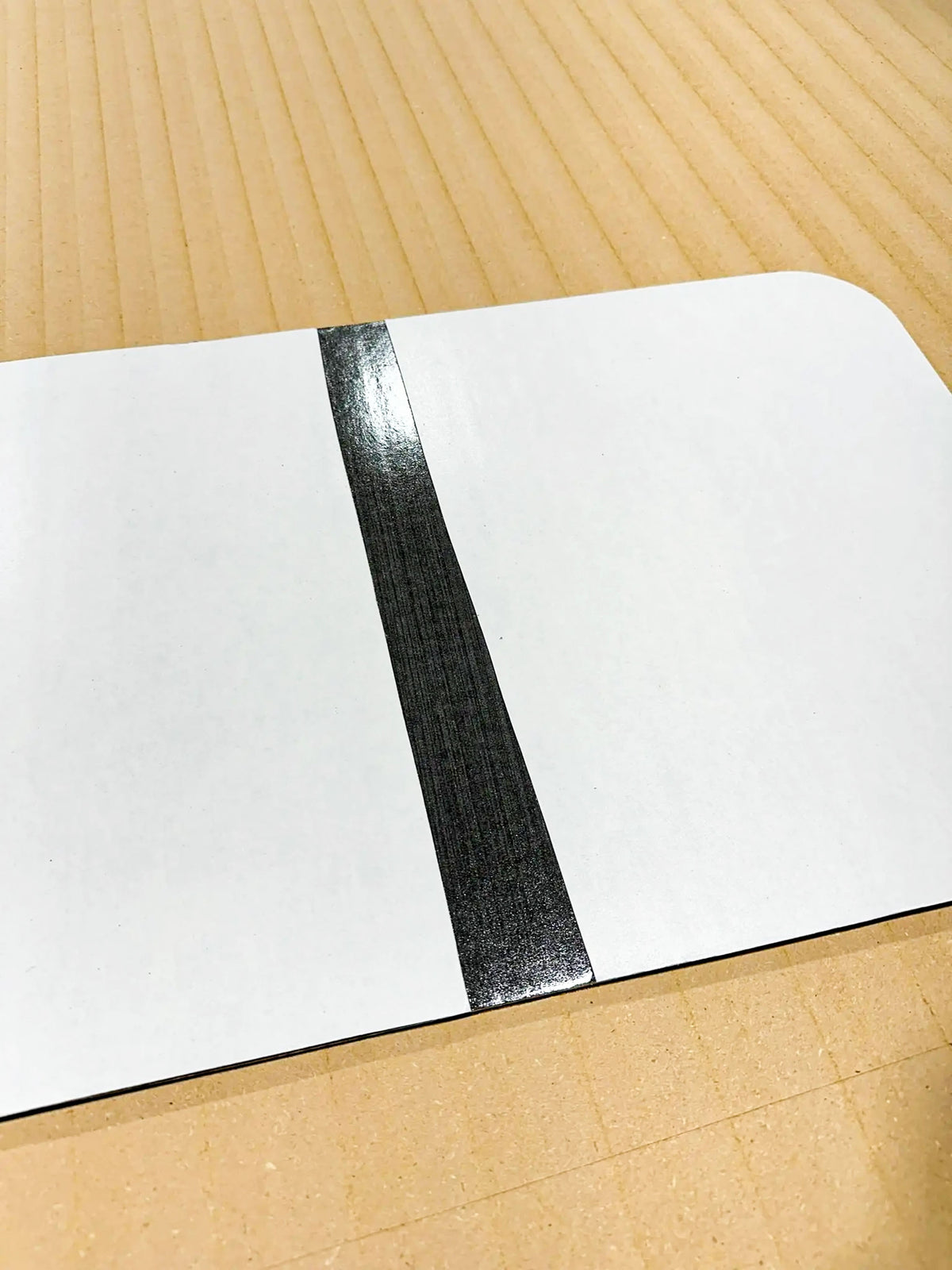

    Peel away the backing between those cuts to expose a narrow adhesive strip

Cuts should be kept as straight as possible to ensure proper alignment.

Position the Panel

  • Carefully flip the panel over while keeping it lifted off the surface
  • Align the panel exactly where it should be placed

The exposed adhesive strip allows precise positioning without the panel fully sticking.

Set the Center Strip

  • Press down on the exposed adhesive area
  • Apply pressure using a roller
  • Once pressure is applied, the adhesive activates and locks the panel in place

Secure Each Side

  • Lift one side of the panel
  • Reach underneath and pull the paper backing toward you
  • As the backing is removed, rub your hand across the top of the foam to prevent trapping air
  • Work slowly toward the edge
  • Repeat the process on the opposite side

Final Rolling & Edge Press

  • Roll the entire pad using firm, even pressure
  • Pay close attention to edges and corners
  • Additional pressure can be applied carefully using body weight, especially on larger panels

Handling Air Bubbles

Air bubbles can occasionally appear during installation or later due to heat expansion.

If a bubble appears:

  • Use a pin or tack to release the trapped air
  • Firmly press around the pinhole to reseal the adhesive

This is normal and does not indicate product failure.

After Installation

  • Avoid heavy foot traffic for at least 24 hours
  • Allow adhesive to fully cure over time
  • Normal use can resume once bonding is complete

For cleaning and long-term care, refer to our dedicated maintenance guides.

Need Help?

If you have questions at any point during installation, contact us before proceeding. We are happy to help ensure everything is installed correctly.
