Most foam installs that fail aren't a product problem — they're a prep problem. Rushing the surface cleaning or peeling adhesive from the wrong spot will cost you time and money. Here's the full walkthrough so you get a clean, lasting install on the first try.
It Starts With a Clean Surface
This is the step most people underestimate. Your boat deck, console, or cooler top might look clean, but wax residue, salt film, and oils are invisible and they will prevent the adhesive from bonding properly.
Here's how to get it right:
Wash first. Use boat soap and water to remove dirt, salt, and grime. Let it dry completely.
Acetone wipe. Grab a clean, white, lint-free rag and wipe down every area that's getting foam. This strips wax, grease, and oils that soap can't touch. Don't use colored towels — the solvent can transfer dye onto your surface. Let the acetone evaporate fully before moving on.
Final alcohol wipe. Right before you peel the adhesive backing, do one last pass with isopropyl alcohol (at least 75% concentration — we use 99%) on the exact spot where the foam is going. This removes any dust or residue that settled after the acetone step. Think of this area as a clean zone — don't touch it, don't step on it.
If you're doing a full deck install, wash the whole boat first, acetone all the foam areas, then alcohol-wipe each section right before you place each piece.
Tools You'll Need
Nothing exotic here. You probably have most of this already:
Laminate roller — the J-roller type from any home improvement store. This is what gives you the firm, even pressure the adhesive needs to activate.
Slice tool with a micro-ceramic blade — for cutting the adhesive backing. Available online or at hardware stores.
Contractor's tape — standard painter's tape works fine.
Boat soap and water — for the initial wash.
Acetone, isopropyl alcohol, and clean white lint-free rags — for the prep steps above.
The Center-Strip Method (This Is the Key)
Here's where most DIY installs go wrong. People peel the backing from one edge and try to lay the foam down across the surface. Even a small misalignment at the start turns into a noticeable gap or overlap by the time you reach the other side.
We recommend the center-strip method instead. It gives you a reference point in the middle of the pad, so both sides lay down evenly.
Step 1: Flip the foam panel so the paper backing faces up.
Step 2: Using your slice tool, make a straight cut from top to bottom down the center of the backing paper only — don't cut through the foam.
Step 3: Make a second cut about an inch away from the first, creating a narrow strip of backing paper you can peel away.
Step 4: Carefully remove that center strip of backing to expose a thin line of adhesive down the middle.
Step 5: Flip the panel back over and position it on the surface using the exposed center adhesive as your anchor. Press it down firmly. Use tape to hold the edges if needed while you work.
Step 6: Lift one side of the panel, peel the backing toward the edge, and slowly press the foam down. Work from the center outward to push air out as you go.
Step 7: Repeat on the other side.
Rolling and Finishing

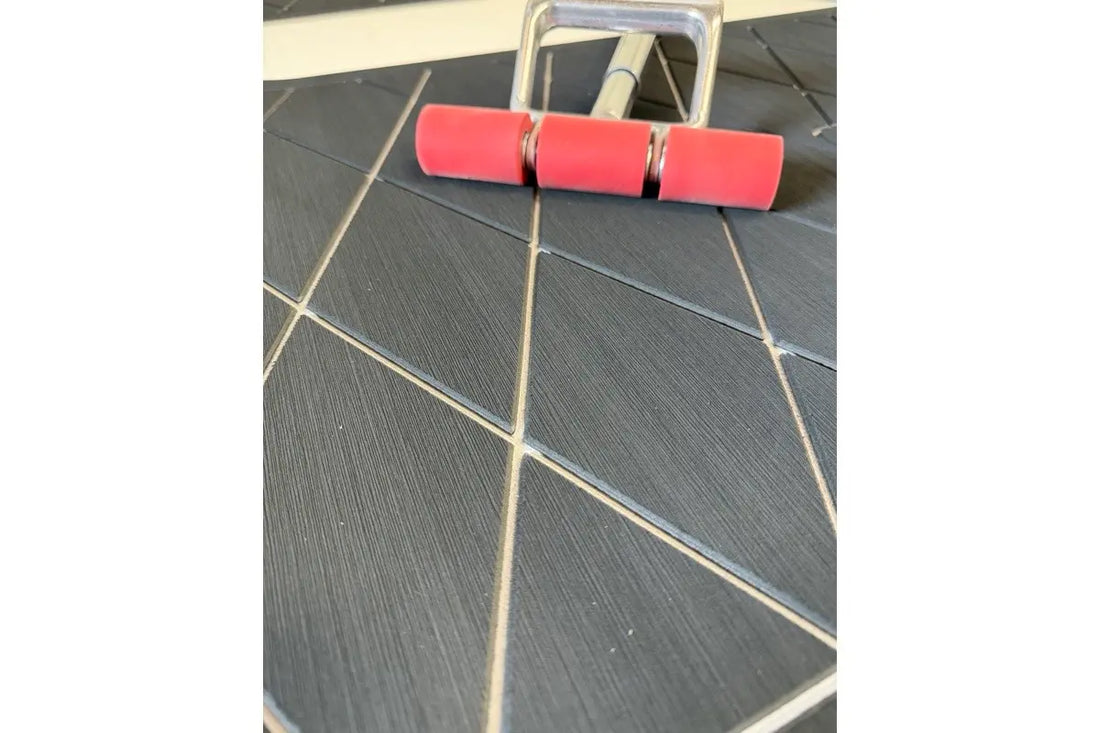

Once the foam is down, grab your laminate roller and go over the entire surface with firm, even pressure. The 3M marine-grade adhesive on all AquaGrip products is pressure-sensitive — it activates at roughly 15 pounds of pressure. Don't skip this step.
Pay extra attention to edges and corners. On larger panels, you can carefully use body weight for additional pressure.
Air Bubbles Are Normal
If a small air bubble shows up during install or later when the sun heats the surface, don't panic. Use a pin or tack to release the trapped air, then press firmly around the pinhole to reseal the adhesive. This is completely normal and doesn't mean anything is wrong with the product.
After You Install
Give the adhesive at least 24 hours to cure before heavy foot traffic or use. The bond strengthens over time, so the longer you can leave it undisturbed, the better.
When to Use AquaScan
If you're installing foam on a complex helm station, a curved console, or anywhere with tight tolerances, our AquaScan digital templating system takes the guesswork out of fitment. We send you the target system, you scan your exact surface, and we CNC-cut your pads for a precision fit. No measuring tape, no paper templates, no trimming on-site.
Questions Before You Start?
If something doesn't look right or you're unsure about a step, reach out before you peel anything. We'd rather walk you through it than have you redo it.
